CNC Mold Manufacturing Workflow

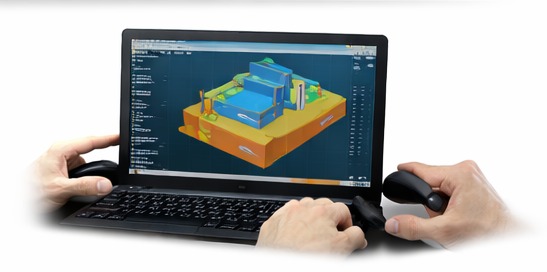

⚙️ 1. Mold Design Preparation
We develop detailed 2D/3D mold designs using advanced CAD software, ensuring accuracy, functionality, and production feasibility from the very beginning.

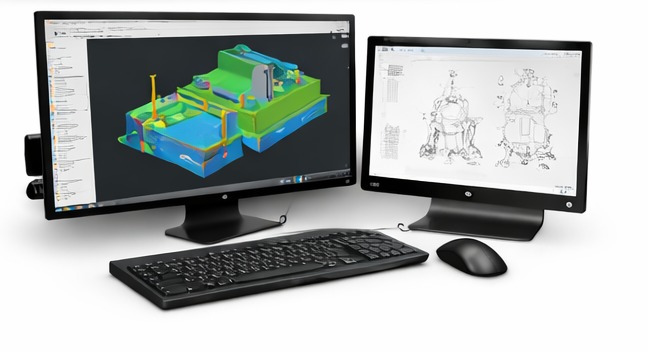

💻 2. CNC Program Generation
The approved design is converted into precise CNC programs through CAM software, defining optimized tool paths for efficient machining.

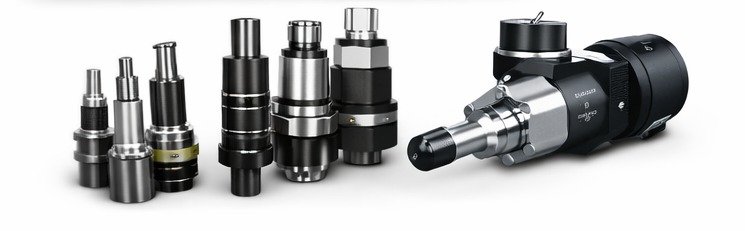

🛠️ 3. Tool Selection & Setup
High-performance cutting tools are selected and configured according to material and design requirements to achieve superior machining results.
📐 4. Mold Plate Clamping & Alignment
The mold plate is securely clamped and precisely aligned on the CNC machine to ensure stability and dimensional accuracy during operations.

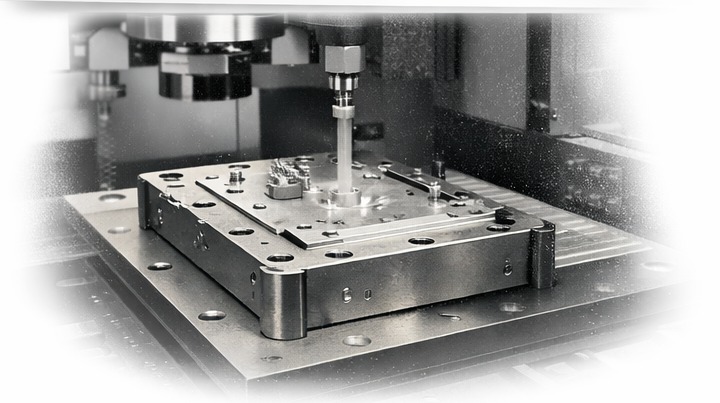

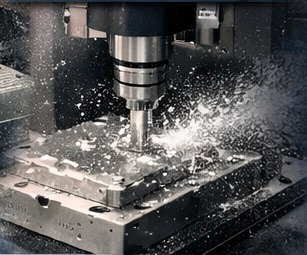

🔩 5. CNC Machining
Advanced CNC machines execute roughing and finishing processes, transforming raw material into high-precision mold components.
🔍 6. Quality Inspection
Each component undergoes strict quality checks using precision instruments to ensure compliance with required tolerances and standards.
🔧 7. Fitting & Assembly
All mold parts are carefully assembled, adjusted, and tested to ensure perfect fitting and operational readiness.
🚀 Parallel Production Integration
Our system enables simultaneous processing of multiple mold orders, significantly reducing lead time and increasing production efficiency.
✅ Why Choose Our CNC Process?
✔ High Precision (±0.005 mm)
✔ Efficient Turnaround Time
✔ Advanced CNC Technology
✔ Skilled Technical Team
✔ Scalable Production Capacity
